Vacuum bag connector for flat surfaces

The stainless steel SMART Valve VACUUM bag connectors for Flat surfaces are non-trough vacuum bag connectors that no longer require cutting any vacuum bag!

No leaking of any vacuum bag!

With more than four decades of experience in advanced composites fabrication, repair, and design, EFC owner Bert Groenewoud developed the new vacuum bag connectors, called the “Smart Valves,” which are time- and cost-saving for the repair or production of advanced composites!

Per December 2025, all Smart valve sales will be handled by HEATCON, USA.
Click link:
https://www.heatcon.com/product/hcs1140-001-smart-valves/
  • Two types are available! One Smart valve for flat surfaces and the other Smart valve for single curved surfaces.
  • They perform better than all existing through-bag vacuum connectors on the worldwide market!
  • This New SMART VACUUM valve connector DOES NOT LEAK compared to any other through-bag vacuum bag connector on the market.
  • The names on the internet for these valves and old vacuum connectors vary from:

Vacuum bag connector, Vacuum valve, Thru-bag vacuum connector, Through-bag vacuum connector, vacuum fittings, Vacuum Sniffer, High-Temp Vacuum connector, stainless steel vacuum bag connector.

Standard, through-bag vacuum connectors, currently (2026) on the market, the so-called “Through-Bag connector” can leak between the base and top plate, and the silicone ring sheet of the vacuum connector.

The Smart valve-vacuum Bag connectors can be used with standard Quick disconnects and Release Male vacuum couplings to receive Quick disconnect female couplings.

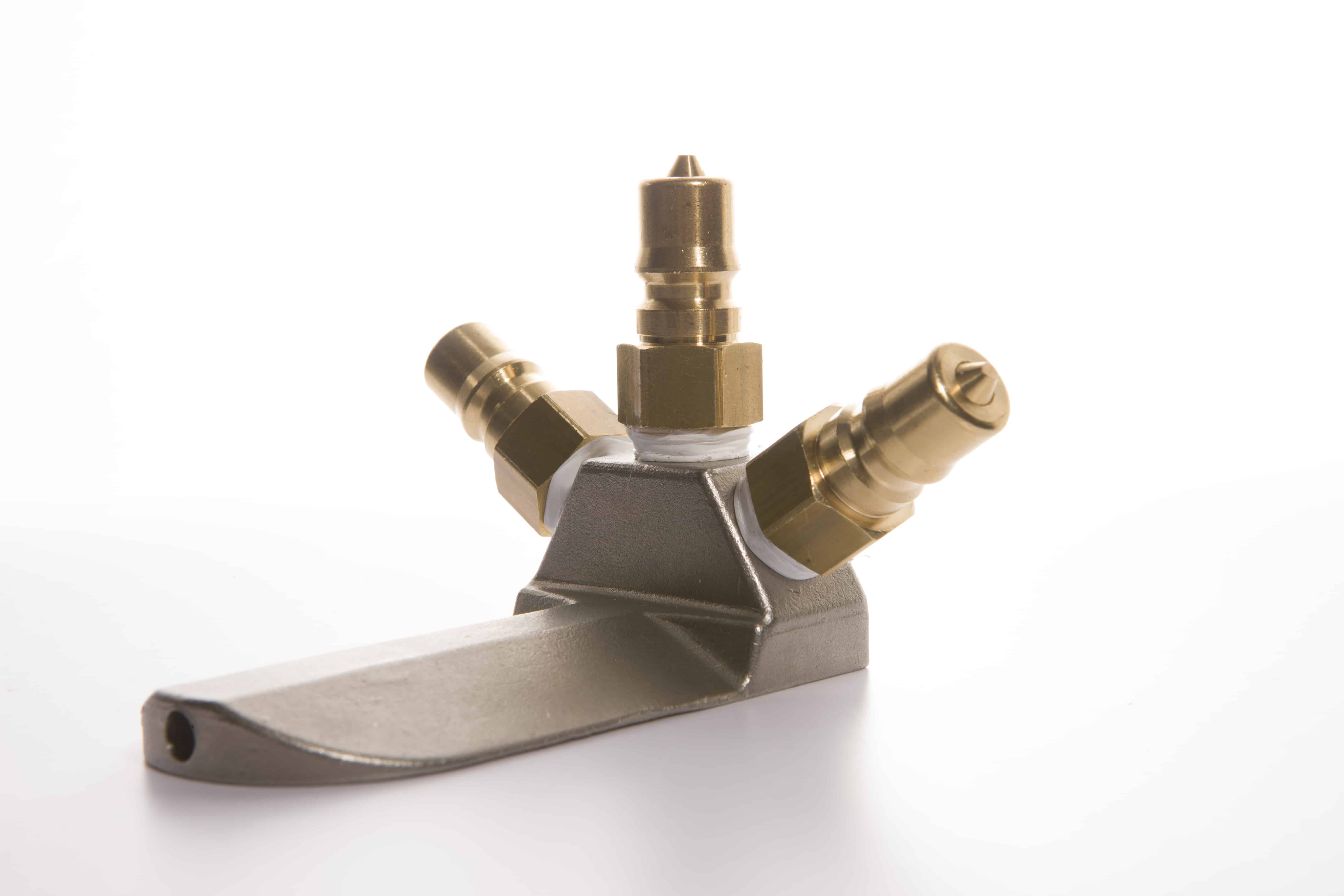

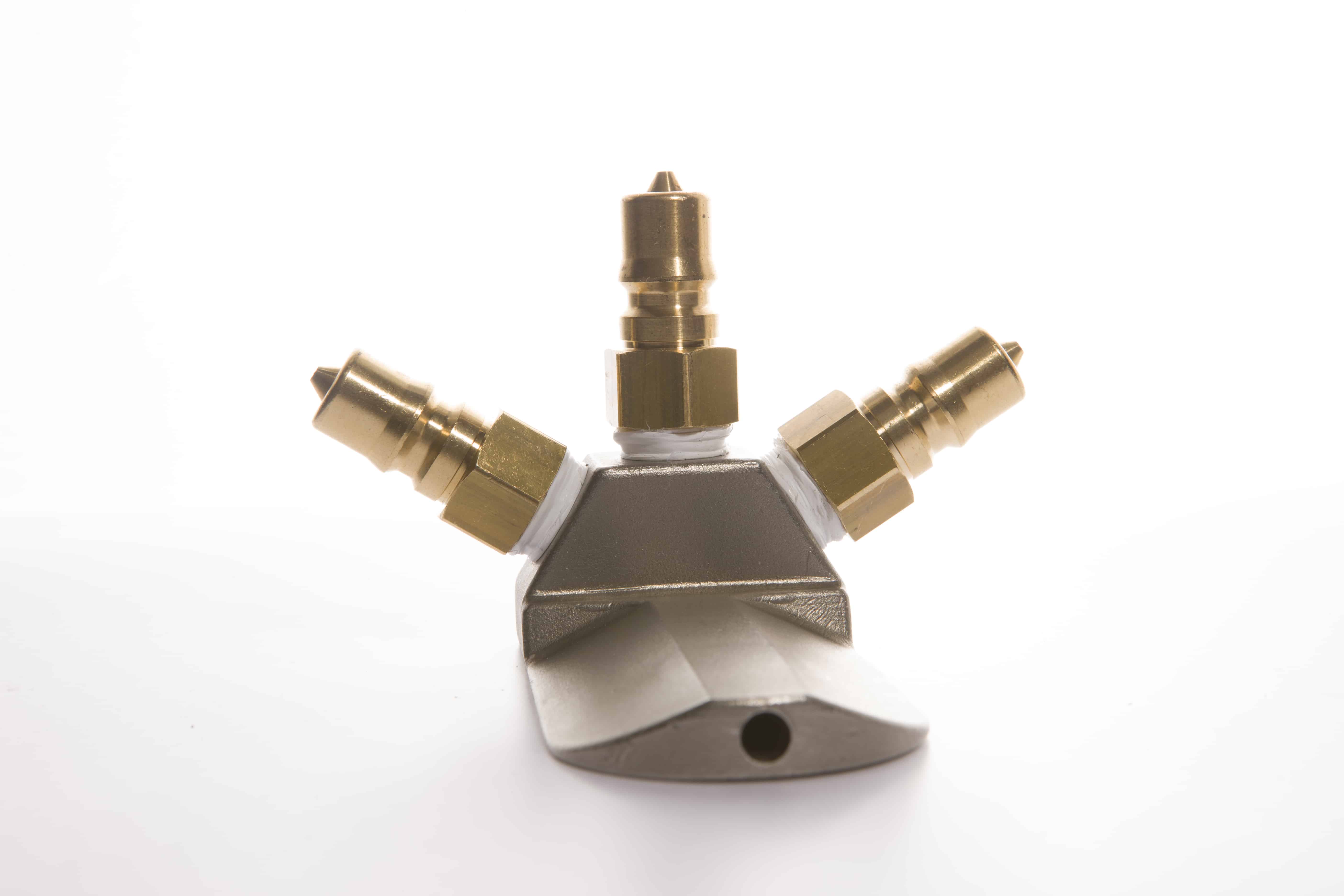

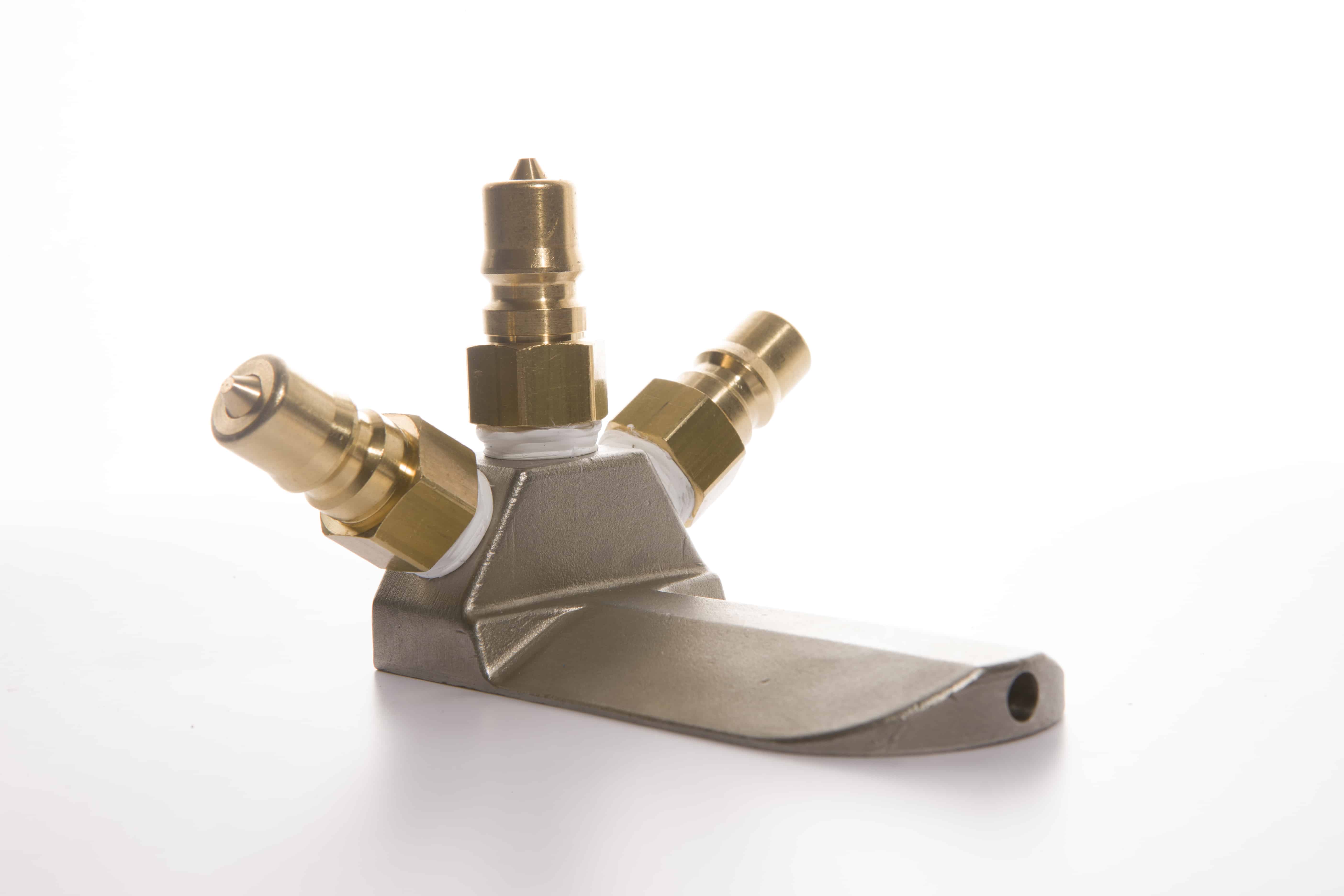

The images above and below the Smart NON-Trough vacuum bag connector show standard quick-disconnect MALE couplings. The Smart vacuum connector does not supply these quick-disconnect standard MALE couplings. They merely serve to show connectivity options. Many vacuum bag equipment suppliers can order these quick-disconnect standard couplings.

Category:

This vacuum bag connector, sniffer for flat surfaces has the following features:

  • Cost-saving due to processing time reduction
  • Cost-saving due to service life of valves
  • Cost-saving by no maintenance on the single part vacuum valve
  • A lifetime warranty is given on the main body of the valve
  • Made from stainless steel, resistant to high temperatures
  • Remains stable once mounted
  • No need to cut any vacuum bag
  • Does not tilt in an autoclave in venting situation or sudden vacuum loss
  • No personnel required to keep the connector in the upright position during the first stages of building up vacuum
  • No risk of losing base plates compared to standard valves on the market
  • Can be hooked up in arrays to vacuum large parts
  • Allows already purchased standard couplings and gauges to be connected to the Smart connector

Additional information

Weight 0,31 kg
